Monitor the Status and Runtime of the Lens¶

The status indicates the Resource's lifecycle state, such as active, error, or deleted, and helps users quickly assess whether the Resource is available and functioning as expected. In contrast, the runtime reflects the Resource's execution state, such as running, failed, or pending, capturing what is actively happening behind the scenes, typically at the container or pod level. Together, these signals help users to detect configuration issues, operational failures, and disruptions that could impact downstream workflows.

A Lens is a non-runnable Resource in DataOS; however, during the creation of a Lens model, a corresponding Service is automatically generated in the backend with the suffix ‘-api’. This Service handles the Lens’s API interface, and users can view its status and runtime.

Monitor the status of Lens using DataOS CLI¶

The status of a Lens can be monitored using the DataOS CLI by executing the following command, replacing the placeholder with the workspace in which the user is working. This command will list all the Lenses created by the user.

dataos-ctl get -t lens-w ${{workspace-name}}

Example Usage:

dataos-ctl get -t lens -w public
INFO[0000] 🔍 get...
INFO[0001] 🔍 get...complete

                   NAME                  | VERSION | TYPE | WORKSPACE |   STATUS    | RUNTIME |           OWNER
-----------------------------------------|---------|------|-----------|-------------|---------|----------------------------
   data-product-insights                 | v1alpha | lens | public    | active      |         | iamgroot

In the example above, the STATUS column indicates the current state of the Lens is active in this case, which confirms that the Lens is available and usable.

Monitor the status of Lens on Metis¶

To monitor the status of Lens on the Metis Catalog UI, follow the steps below:

Open the Metis Catalog.

Open the Metis Catalog
Search for a Lens by name.

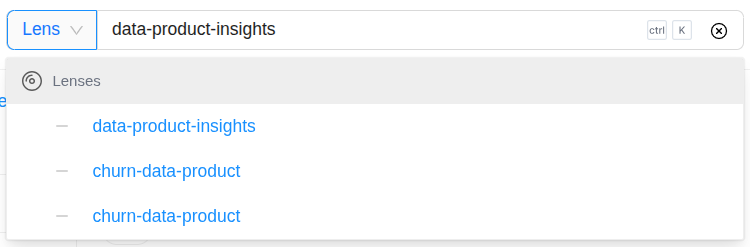

Search the Lens in Metis
Click on the Lens that needs to be monitored and check the Status, which is represented as State.

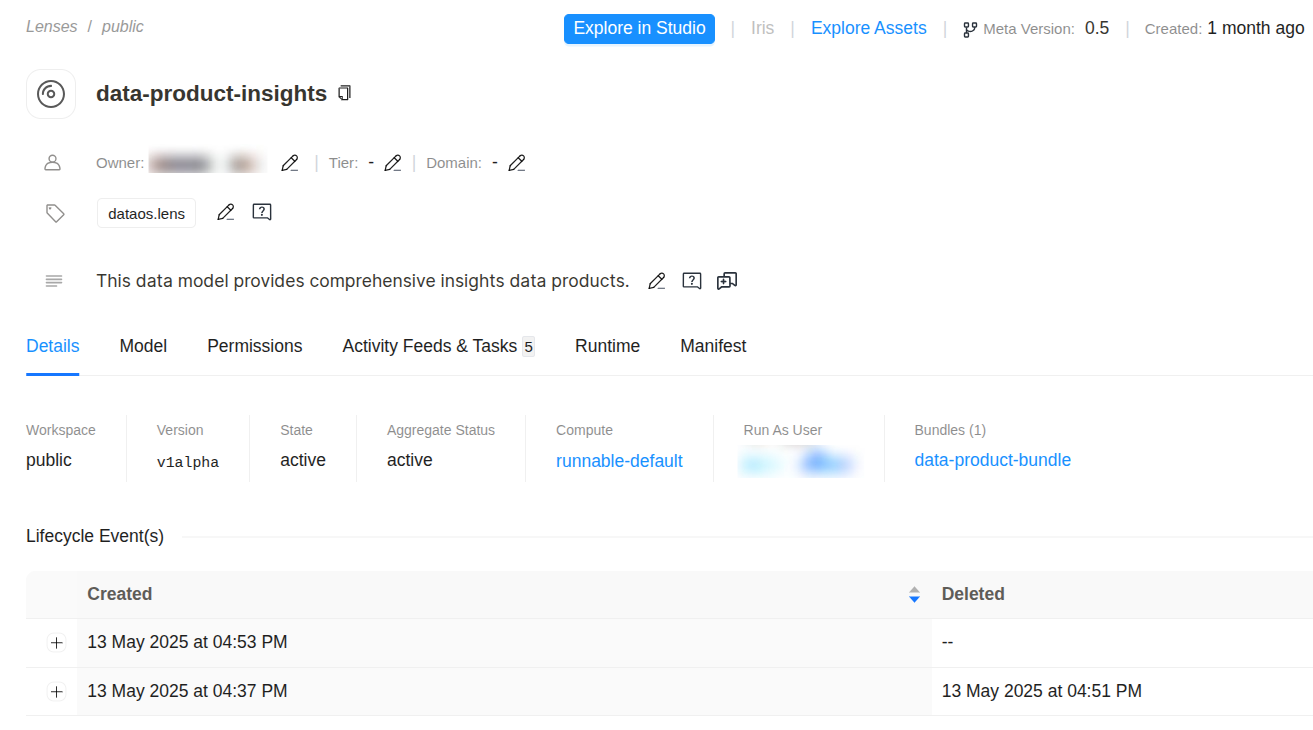

Lens details in Metis

The active state indicates that the Lens is currently accessible and usable by other DataOS Resources. This is the expected state for any active Lens within DataOS.

Monitor the status of a Lens on Operations¶

To monitor the status of Lens on the Operations app, follow the steps below:

Open the Operations app.

Open the Operations app
Under the User space → type → Lens search for the Lens.

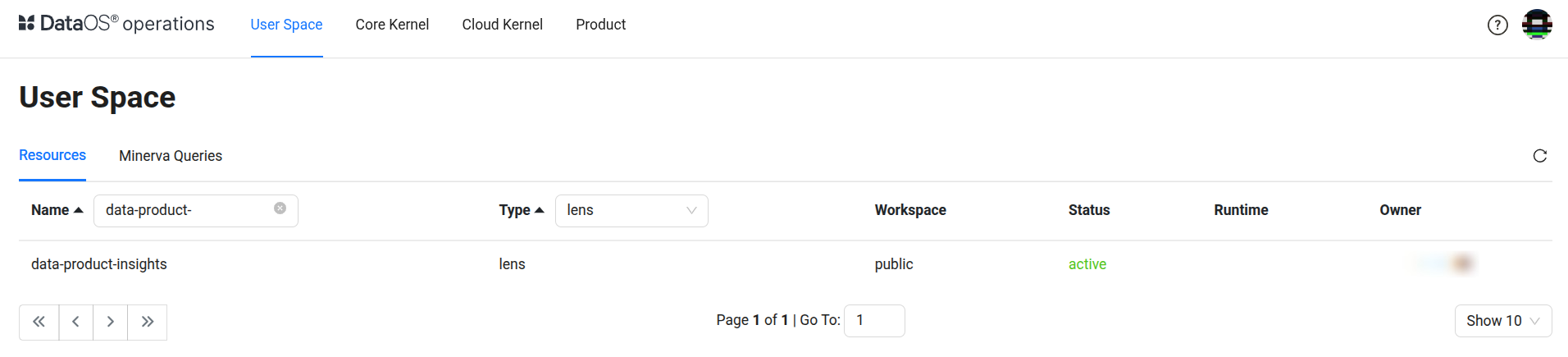

Operations > User Space > Lens

The active status indicates that the Resource is valid and available for use within DataOS. This is the expected state for a healthy and usable Resource.
On clicking the Lens, its builder state can also be monitored.

🗣 The Builder Stage reflects the internal progress of a DataOS Resource as it is being reconciled and provisioned by the platform. This stage is managed by the Poros controller, which is responsible for ensuring the system’s actual state matches the desired state defined in the Resource manifest (YAML).

When a user applies a Resource YAML (dataos-ctl resource apply -f resource.yaml), the builder workflow begins. Poros orchestrates this by comparing the input state (what the user requested) with the current cluster state (what already exists), and attempts to reconcile the two.

If a Resource enters an error state during this stage, it means something failed while setting it up. A Resource in an error state at the Builder Stage is considered not fully created and should not be treated as active, even if it appears in the UI list.

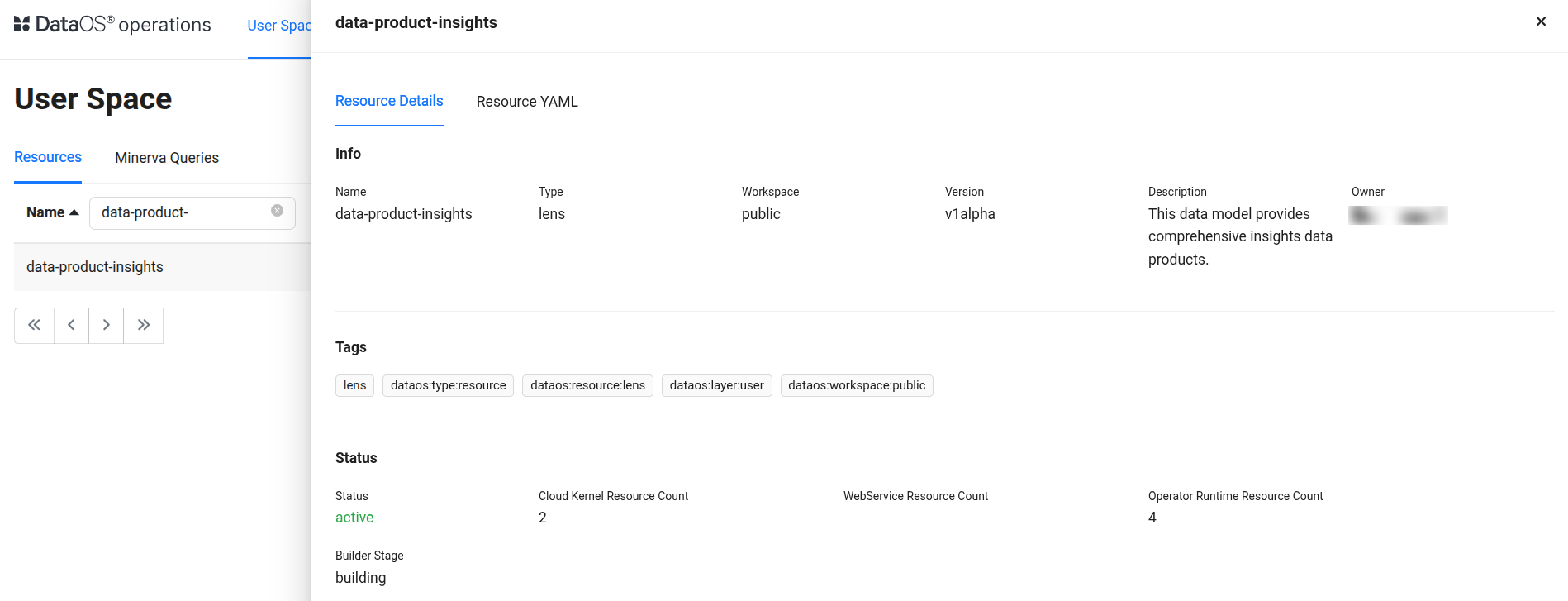

Lens details in Operations

Monitoring the Builder Stage is crucial, especially when status = error. If the builder stage = building, the issue likely occurred after build, possibly runtime or external issues. But if the builder stage = error, then the YAML file itself needs fixing.

Configure alerts for status changes¶

To automatically track critical state transitions, users can configure a Monitor and Pager to send alerts when the status of a Lens changes to values like error or deleted. This enables teams to respond immediately to resource failures, misconfigurations, or unexpected deletions that may impact dependent components. Click here to view the steps to set up alerts for status changes.
