Steps to delete Volume data from AWS Cloud Storage

Follow the steps below to delete the Volume data from AWS Cloud Storage.

Pre-requisites

  • Ensure that no Resources are dependent on the volume being deleted. For instance, if a Service is utilizing a Volume of type CloudPersistent, that Service must be deleted prior to removing the volume data from AWS.

  • Ensure that the individual has the necessary permissions to execute kubectl commands.

1. Get the Volume identifier

Whenever a Volume Resource is provisioned, in the backend, a corresponding Volume Identifier is generated in Kubernetes Cluster. To retrieve this identifier, execute the following command:

kubectl get pvc -a

NAMESPACE       NAME                                               STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS       VOLUMEATTRIBUTESCLASS   AGE
caretaker       pulsar-bookie-ledgers-pulsar-bookie-4              Bound    pvc-8d8a3912-1102-4c1f-a9b9-d1c27d6de       50Gi       RWO            disk-premium-delete <unset>
caretaker       redis-data-redis-caretaker-master-0                Bound    pvc-ed98c71e-1093-46d8-bd0a-ff4985e0        100Gi      RWO            disk-premium-delete <unset>                 5d19h
caretaker       redis-data-redis-sql-workbench-master-0            Bound    pvc-de4f597e-460e-4f31-821c-8ca7f159        5Gi        RWO            disk-premium-delete <unset>                 10d
heimdall        redis-data-redis-heimdall-cache-master-0           Bound    pvc-6344689e-1f2f-4974-97d8-088041c7d507    10Gi       RWO            disk-premium-delete <unset>                 10d
juicefs-system  redis-data-redis-storage-meta-master-0             Bound    pvc-da2a84c6-f0b9-4952-8b77-4dbefb4b842a    50Gi       RWO            disk-premium-delete <unset>                 10d
public          persistent-v                                       Bound    pvc-34ab82f8-f18c-4ee0-85c5-2230d1505464    5Gi        RWX            juicefs-retain       <unset>                 10d
sandbox         persistent-v                                       Bound    pvc-428581ed-dc67-4cdd-907b-e24f3fe533c5e   5Gi        RWX            juicefs-retain       <unset>                 10d
sentinel        data-thanos-ruler-0                                Bound    pvc-36eb4fb6-5e76-4eb8-acba-0a6f0a26c1d1    5Gi        RWO            disk-premium-delete <unset>                 10d

For example, a Volume named redis-data-redis-storage-meta-master-0 of type CloudPersistent was created. In the Kubernetes cluster, this resulted in the generation of a corresponding Volume Identifier: pvc-da2a84c6-f0b9-4952-8b77-4dbefb4b842a.

2. Search the Volume identifier in AWS Cloud

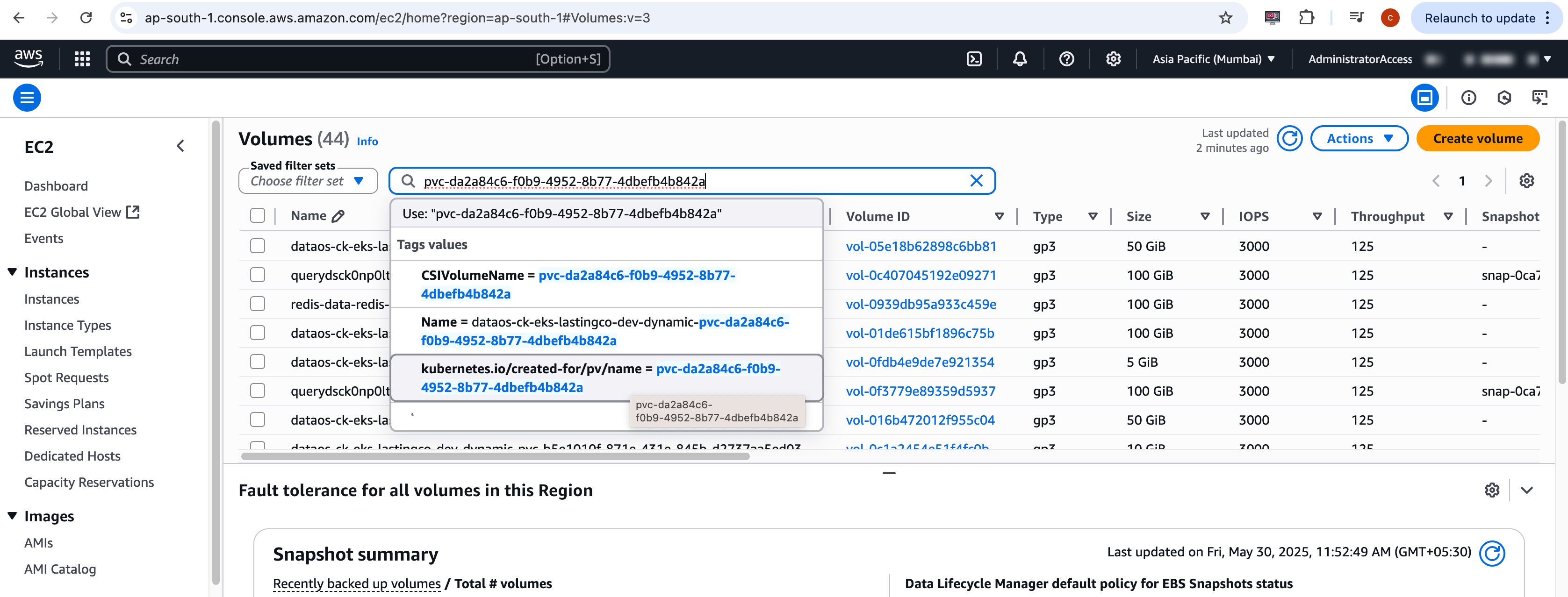

  • In the AWS portal, open the "Volumes" section and search the Volume Identifier pvc-da2a84c6-f0b9-4952-8b77-4dbefb4b842a.

    AWS
    AWS Cloud

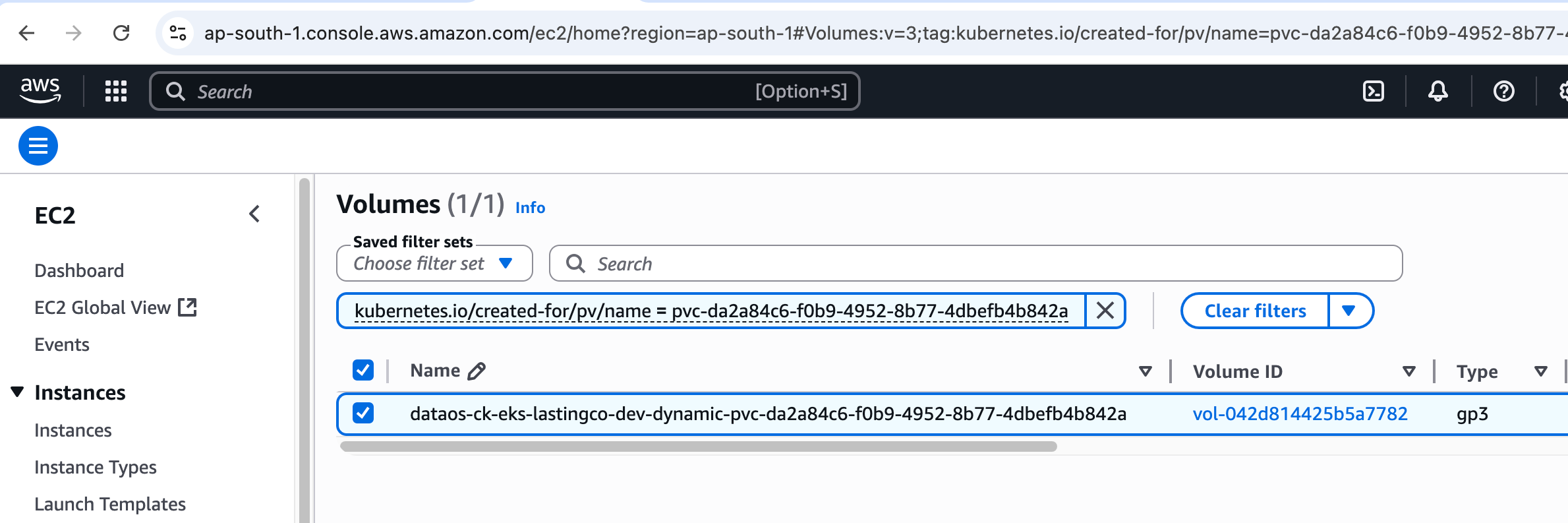

  • Click on the kubernetes.io/created-for/pv/name = pvc-da2a84c6-f0b9-4952-8b77-4dbefb4b842a.

    AWS
    AWS Cloud

3. Delete the Volume

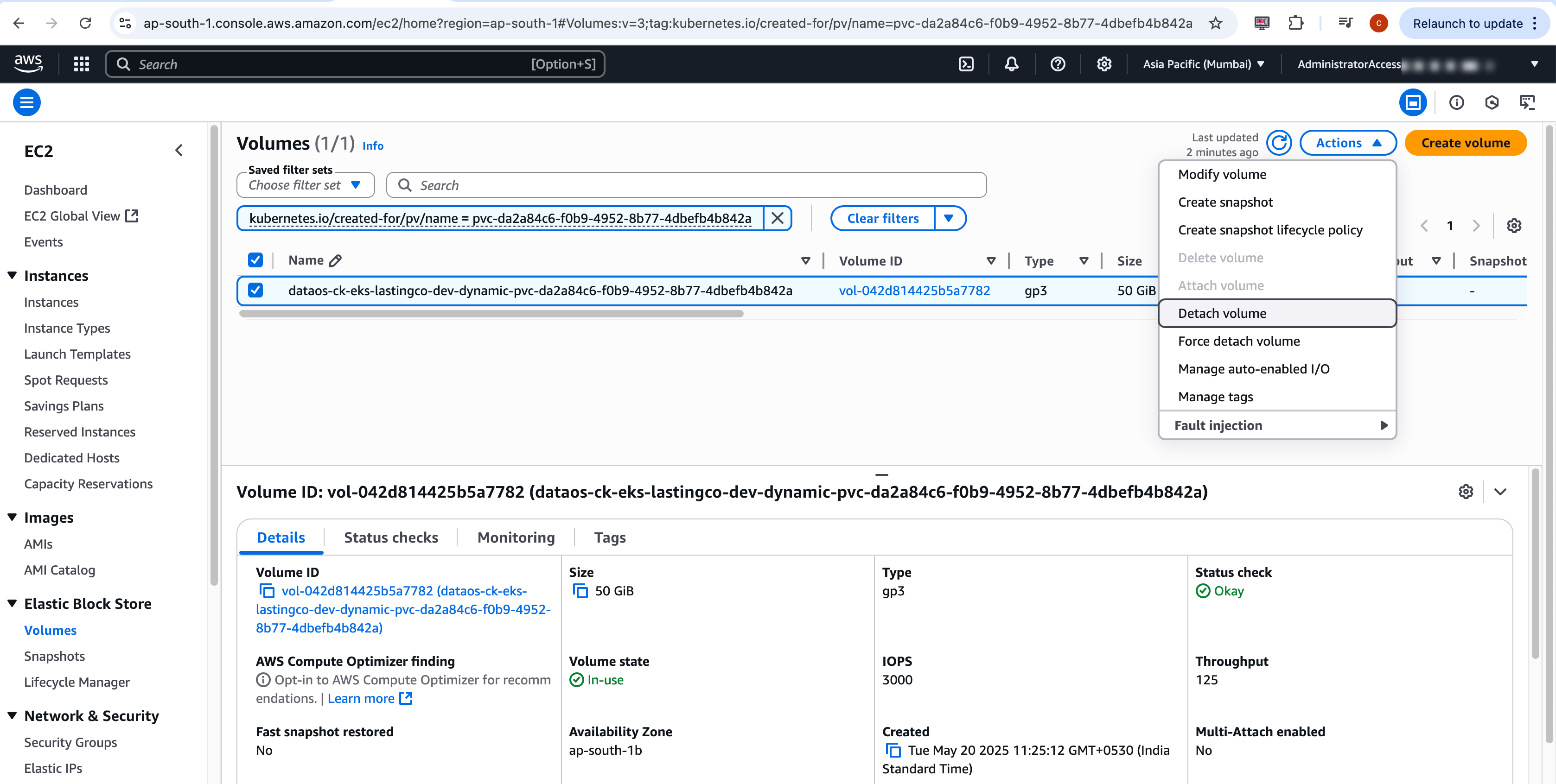

Select the Volume and click on the "Actions" button, then select "Detach Volume".

AWS
AWS Cloud

This will delete the Volume permanently from the AWS Cloud.
