Steps to delete Volume data from Azure Cloud Storage

Follow the steps below to delete the Volume data from Azure Cloud Storage.

Pre-requisites

  • Ensure that no Resources are dependent on the volume being deleted. For instance, if a Service is utilizing a Volume of type CloudPersistent, that Service must be deleted prior to removing the volume data from Azure.

  • Ensure that the individual has the necessary permissions to execute kubectl commands.

1. Get the Volume identifier

Whenever a Volume Resource is provisioned, in the backend, a corresponding Volume Identifier is generated in Kubernetes Cluster. To retrieve this identifier, execute the following command:

kubectl get pvc -n public

NAME                       STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS          VOLUMEATTRIBUTESCLASS     AGE
cola-volume                Bound    pvc-26574dc5-89ee-4269-abcf-38d8d48801e     50Gi       RWO            juicefs-retain        <unset>                  18d
lake-search-store-volume   Bound    pvc4fc91598-4b00-482d-87cf-f3aa34c9f58b     0Gi        RWO            juicefs-retain        <unset>                  14d
ls-test-01                 Bound    pvc4f73155c-2505-4f63-91ac-0fae6dac94aa     8Gi        RWO            disk-premium-delete   <unset>                  28d
ls-vol-02                  Bound    pvc6e5d2d2d-d3da-4c33-81a3-229d9910c5f      8Gi        RWO            disk-premium-delete   <unset>                  16d
ncdc-vol-01                Bound    pvc98d352e6-fee6-4395-84a9-2f9d645a986      8Gi        RWO            disk-premium-delete   <unset>                  17d
ncdc-vol-02                Bound    pvcf19b6419-9b7f-4153-b614-830cfcb5fa64     8Gi        RWO            disk-premium-delete   <unset>                  17d
ncdc-vol-03                Bound    pvc85d525f7-79e4-41ae-b2c1-420bf860368f     8Gi        RWO            disk-premium-delete   <unset>                  15d
ncdc-vol-04                Bound    pvcb0db9bd9-0ab0-4eb8-8f9f-03a72a0e5e3b     8Gi        RWO            juicefs-retain        <unset>                  15d
persistent-v               Bound    pvc-8b75b7bcf-5bc8-4a3c-ada7-ba859553392    8Gi        RWX            disk-premium-retain   <unset>                  18h
testvolume                 Bound    pvc-5d4c5939-3702-4b77-8d87-37117b78bb1c    8Gi        RWX            juicefs-delete        <unset>                  29d
volume01test               Bound    pvc7843f55c-9ec5-417e-a5d0-f8e98478228      1Gi        RWX            juicefs-delete        <unset>                  13d
volumetest                 Pending                                                                                              <unset>                  13d
volumetesttemp             Bound    pvcf5e856c03-3555-42be-9e47-e34b54b4e0c     8Gi        RWO            juicefs-delete        <unset>                  13d

For testing purpose, a Volume named testvolume of type CloudPersistent was created. In the Kubernetes cluster, this resulted in the generation of a corresponding Volume Identifier: pvc-5d4c5939-3702-4b77-8d87-37117b78bb1c.

2. Search the Volume identifier in Azure Cloud

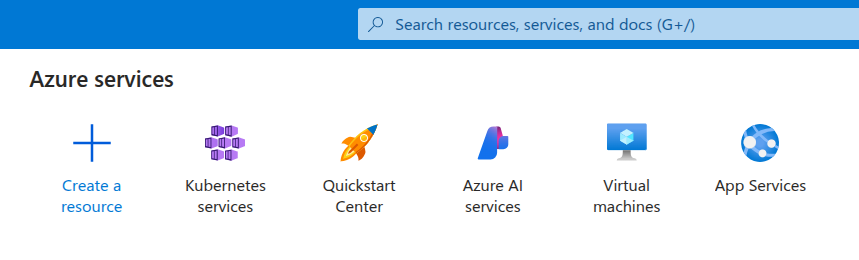

  • In the Azure portal, go to the "Kubernetes services" under the "Azure services" section.

    Microsoft Azure
    Microsoft Azure

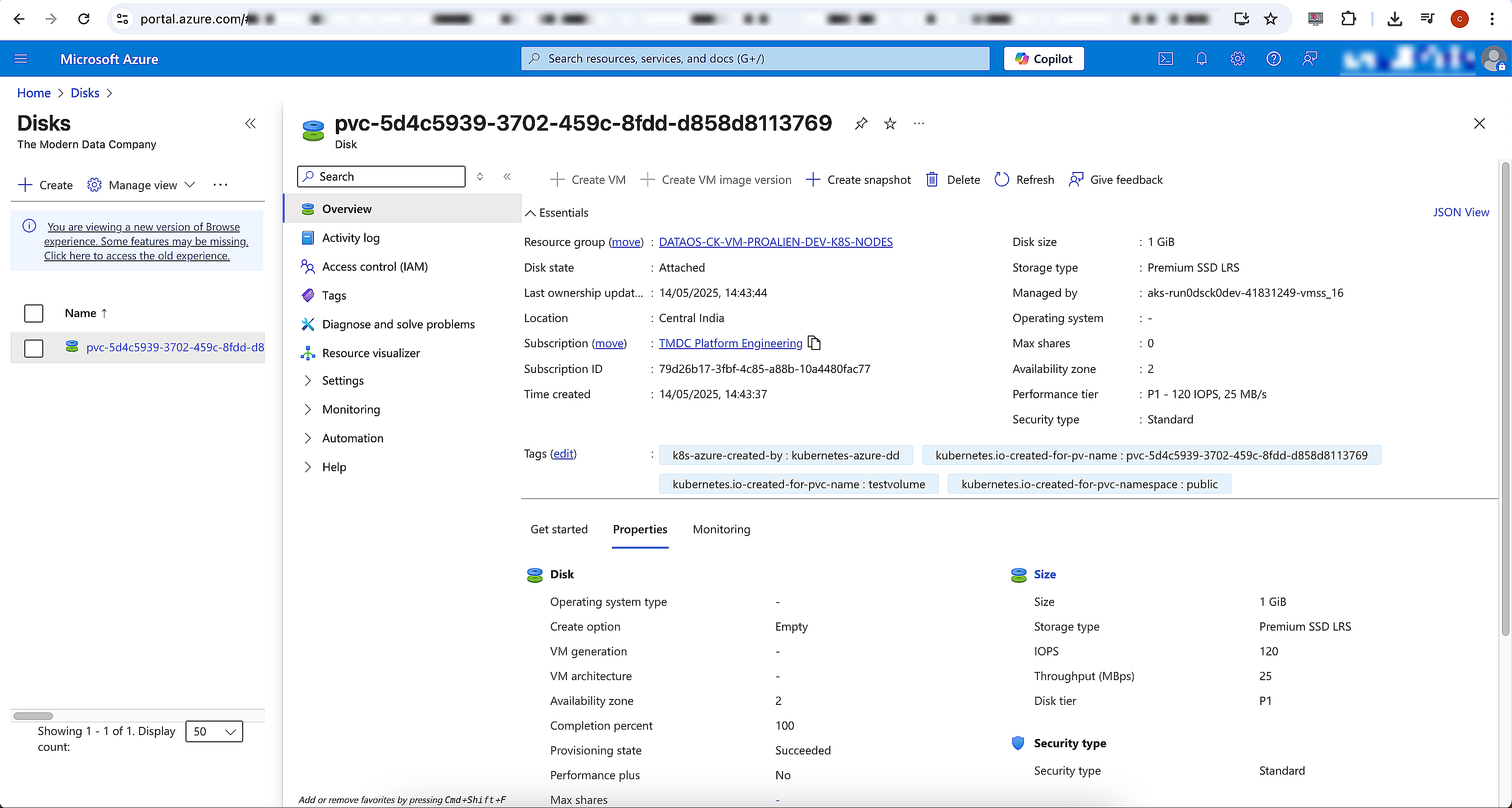

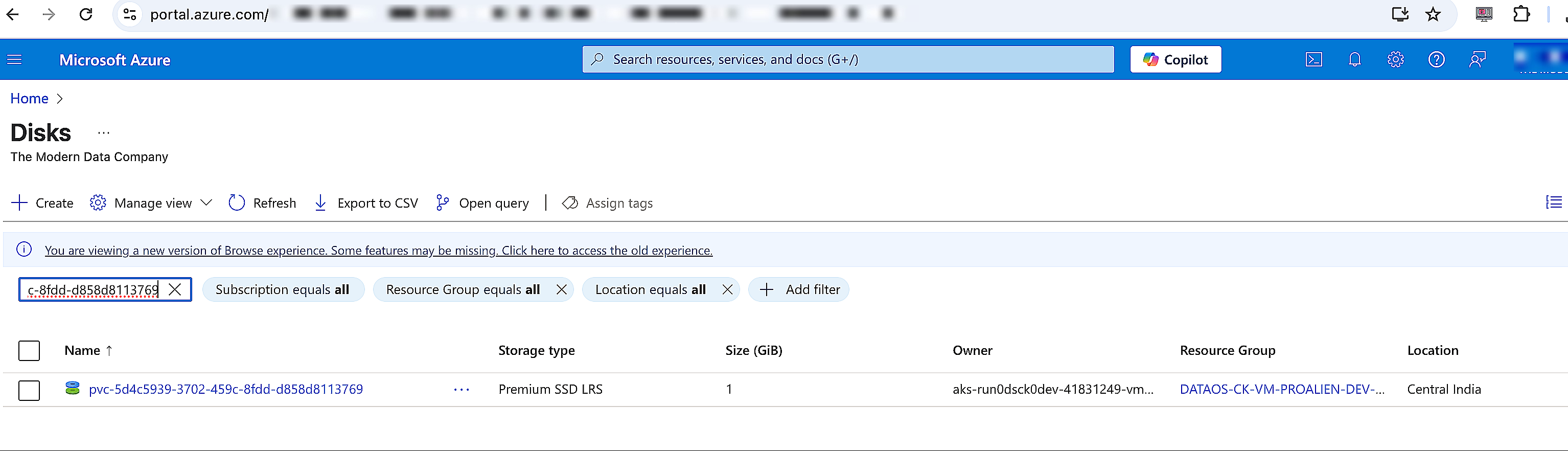

  • Go to the "Disks" section, and search the pvc-5d4c5939-3702-4b77-8d87-37117b78bb1c created with testvolume.

    Microsoft Azure
    Microsoft Azure

    Microsoft Azure
    Microsoft Azure

3. Delete the Volume

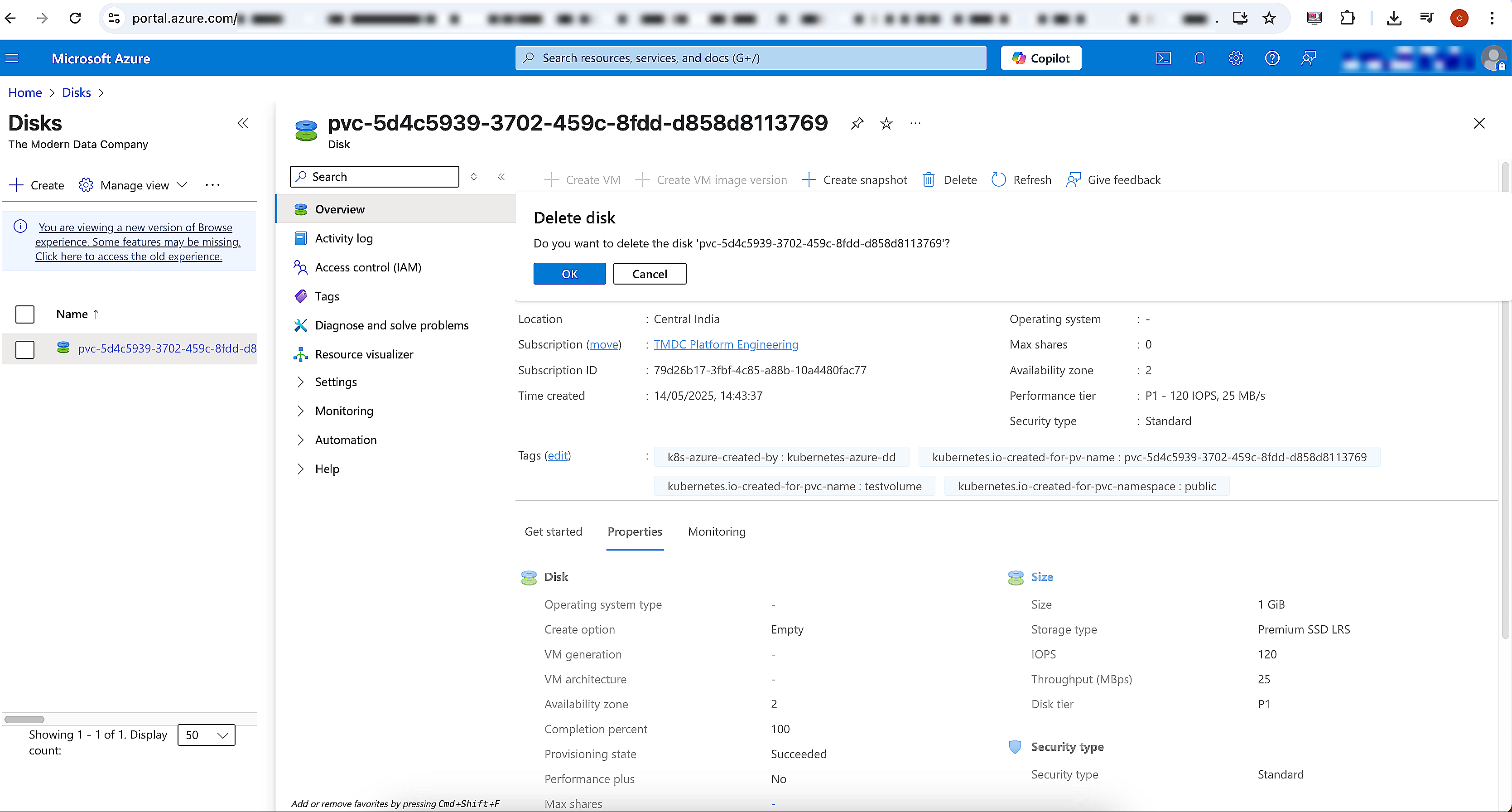

Click on the "Delete" button and select "OK".

Microsoft Azure
Microsoft Azure

This will delete the Volume permanently from the Azure Cloud.
