Monitor the Logs of a Cluster¶

This section involves the steps to observe the logs of a Cluster on different endpoints such as DataOS CLI, Metis UI, and Operations App.

DataOS CLI¶

To monitor the logs of a Cluster using DataOS CLI, follow the steps below:

On DataOS CLI, execute the following command by replacing the placeholders with the actual values.

dataos-ctl log -t cluster -w ${{workspace-name}} -n ${{workflow-name}}

Example Usage:

dataos-ctl log -t cluster -w public -n minion
INFO[0000] 📃 log(public)...
INFO[0001] 📃 log(public)...complete

           NODE NAME           │ CONTAINER NAME │ ERROR
───────────────────────────────┼────────────────┼────────
  minion-jqtw-64c658f857-wwq6j │ themis         │
         # ^ pod name
-------------------LOGS-------------------
++ id -u
+ myuid=10009
++ id -g
+ mygid=0
+ set +e
++ getent passwd 10009
+ uidentry=kyuubi:x:10009:0::/home/kyuubi:/bin/sh
+ set -e
+ '[' -z kyuubi:x:10009:0::/home/kyuubi:/bin/sh ']'
+ '[' -z /usr/lib/jvm/zulu8 ']'
+ SPARK_CLASSPATH=':/opt/spark/jars/*'
+ env
+ grep SPARK_JAVA_OPT_
+ sort -t_ -k4 -n
+ sed 's/[^=]*=\(.*\)/\1/g'
+ readarray -t SPARK_EXECUTOR_JAVA_OPTS
+ '[' -n '' ']'
+ '[' -z ']'
+ '[' -z ']'
+ '[' -n '' ']'
+ '[' -z ']'
+ '[' -z ']'
+ '[' -z x ']'
+ SPARK_CLASSPATH='/opt/spark/conf::/opt/spark/jars/*'
+ case "$1" in
+ echo 'Non-spark-on-k8s command provided, proceeding in pass-through mode...'
Non-spark-on-k8s command provided, proceeding in pass-through mode...
+ CMD=("$@")
+ exec /usr/bin/tini -s -- ./bin/kyuubi run
Warn: Not find kyuubi environment file /opt/kyuubi/conf/kyuubi-env.sh, using default ones...
JAVA_HOME: /usr/lib/jvm/zulu8
KYUUBI_HOME: /opt/kyuubi
KYUUBI_CONF_DIR: /opt/kyuubi/conf
KYUUBI_LOG_DIR: /opt/kyuubi/logs
KYUUBI_PID_DIR: /opt/kyuubi/pid
KYUUBI_WORK_DIR_ROOT: /opt/kyuubi/work
FLINK_HOME:
FLINK_ENGINE_HOME: /opt/kyuubi/externals/engines/flink
SPARK_HOME: /opt/spark
SPARK_CONF_DIR: /opt/spark/conf
SPARK_ENGINE_HOME: /opt/kyuubi/externals/engines/spark
TRINO_ENGINE_HOME: /opt/kyuubi/externals/engines/trino
HIVE_ENGINE_HOME: /opt/kyuubi/externals/engines/hive
HADOOP_CONF_DIR:
YARN_CONF_DIR:
Starting org.apache.kyuubi.server.KyuubiServer
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/opt/kyuubi/jars/slf4j-reload4j-1.7.36.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/opt/kyuubi/jars/dataos-spark-auth_2.12-1.9.2.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/opt/kyuubi/jars/log4j-slf4j-impl-2.24.1.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/opt/kyuubi/jars/slf4j-log4j12-1.7.25.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.slf4j.impl.Reload4jLoggerFactory]
Missing log4j-defaults.properties
log4j:WARN No appenders could be found for logger (org.apache.kyuubi.server.KyuubiServer).
log4j:WARN Please initialize the log4j system properly.
log4j:WARN See http://logging.apache.org/log4j/1.2/faq.html#noconfig for more info.

These logs show:

The container started successfully.
All major environment variables were configured.
KyuubiServer started, despite minor logging configuration warnings.
The pod is running and healthy.

This output is typical for a Spark/SQL gateway container like Kyuubi deployed in a cluster resource.

Metis UI¶

To monitor the logs of a Cluster on the Metis Catalog UI, follow the steps below:

Open the Metis Catalog.

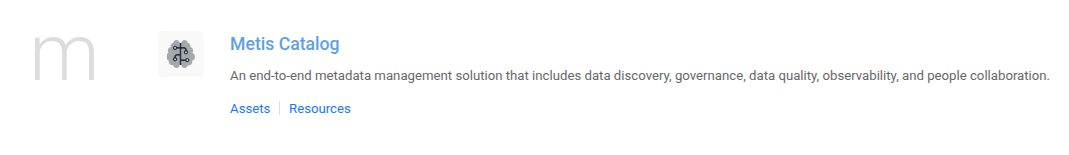

Open the Metis Catalog
Search for the Cluster by name.

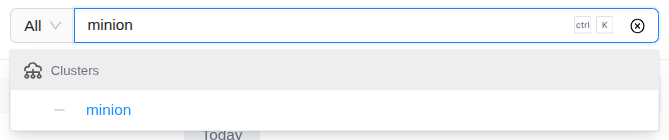

Search the Cluster in Metis
Click on the Cluster that needs to be monitored and navigate to the ‘Runtime’ section.

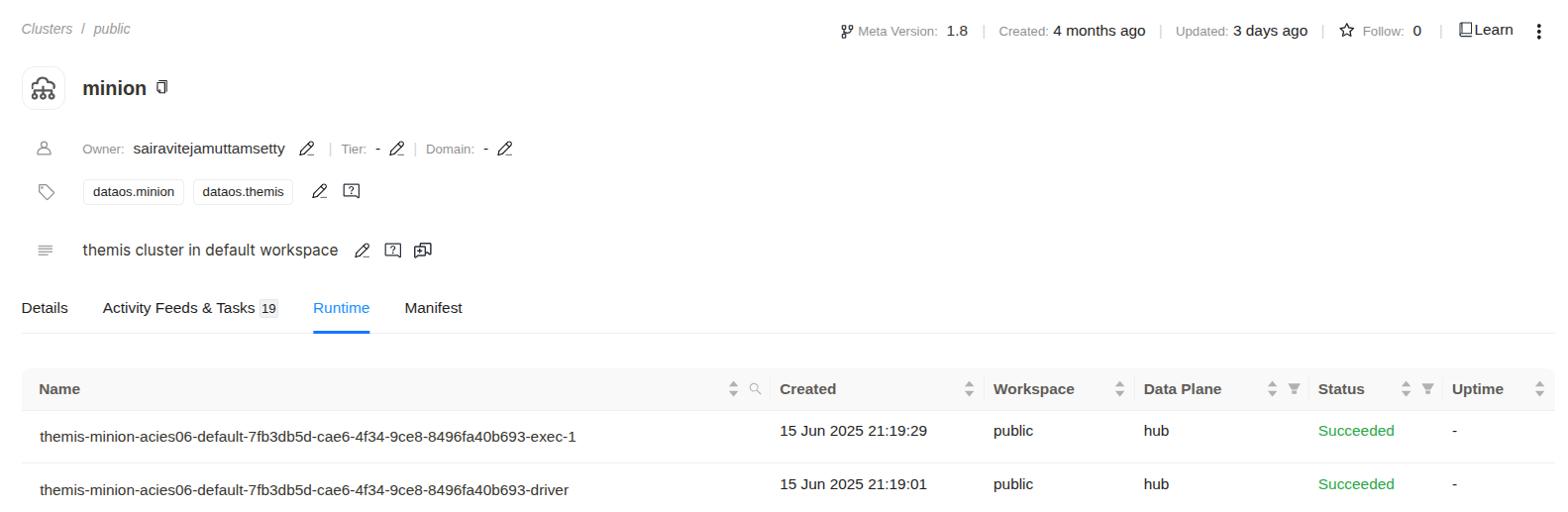

Cluster runtime in Metis
Click on any pod name for which you want to monitor the logs, and navigate to the ‘Pod Logs’ section.

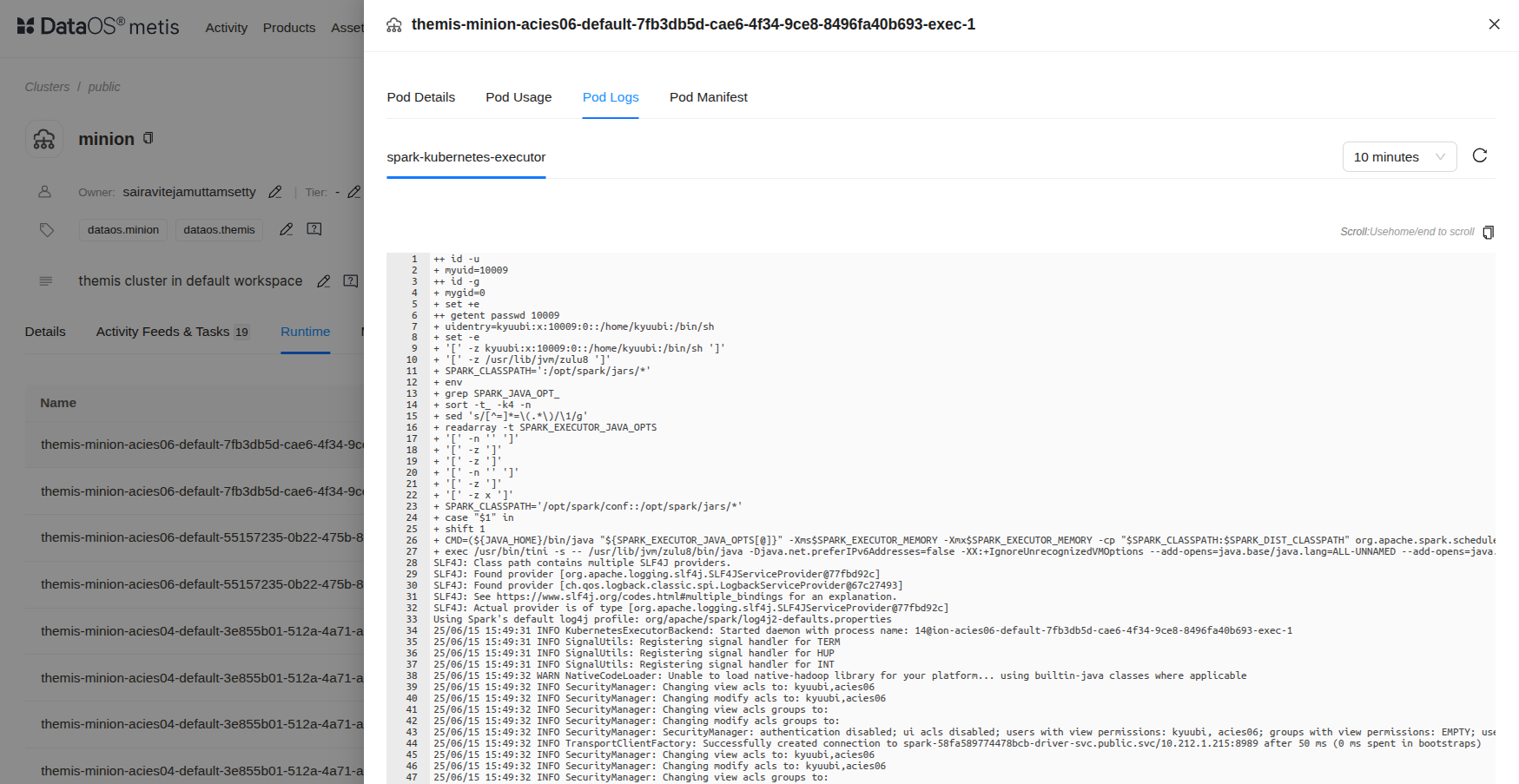

Pod Logs in Metis

These logs show:
- The container started successfully.
- All major environment variables were configured.
- KyuubiServer started, despite minor logging configuration warnings.
- The pod is running and healthy.
This output is typical for a Spark/SQL gateway container like Kyuubi deployed in a cluster resource.

Operations App¶

To monitor the logs of a Cluster on the Operations App, follow the steps below:

Open the Operations app.

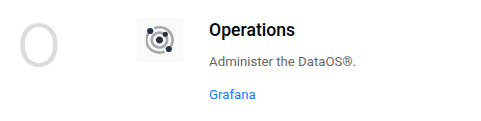

Open the Operations app
Navigate to User Space → Resources → Cluster and search for the Cluster by name.

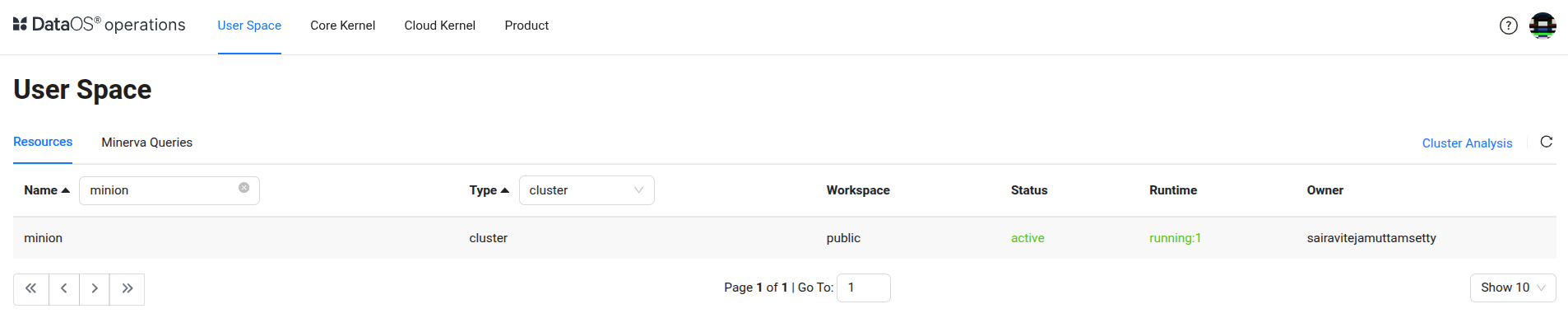

Operations > Resources > Cluster
Click on the Cluster that needs to be monitored and navigate to the ‘Resource Runtime’ section.

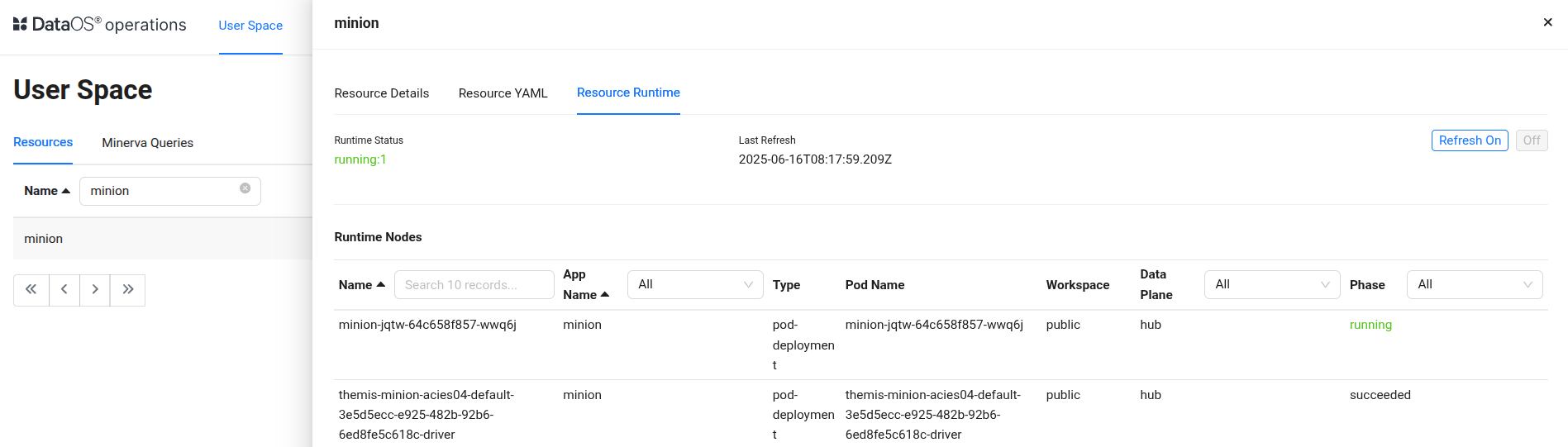

Cluster resource runtime in Operations
Click on any runtime node for which you want to monitor the logs, and navigate to the ‘Runtime Node Logs’ section.

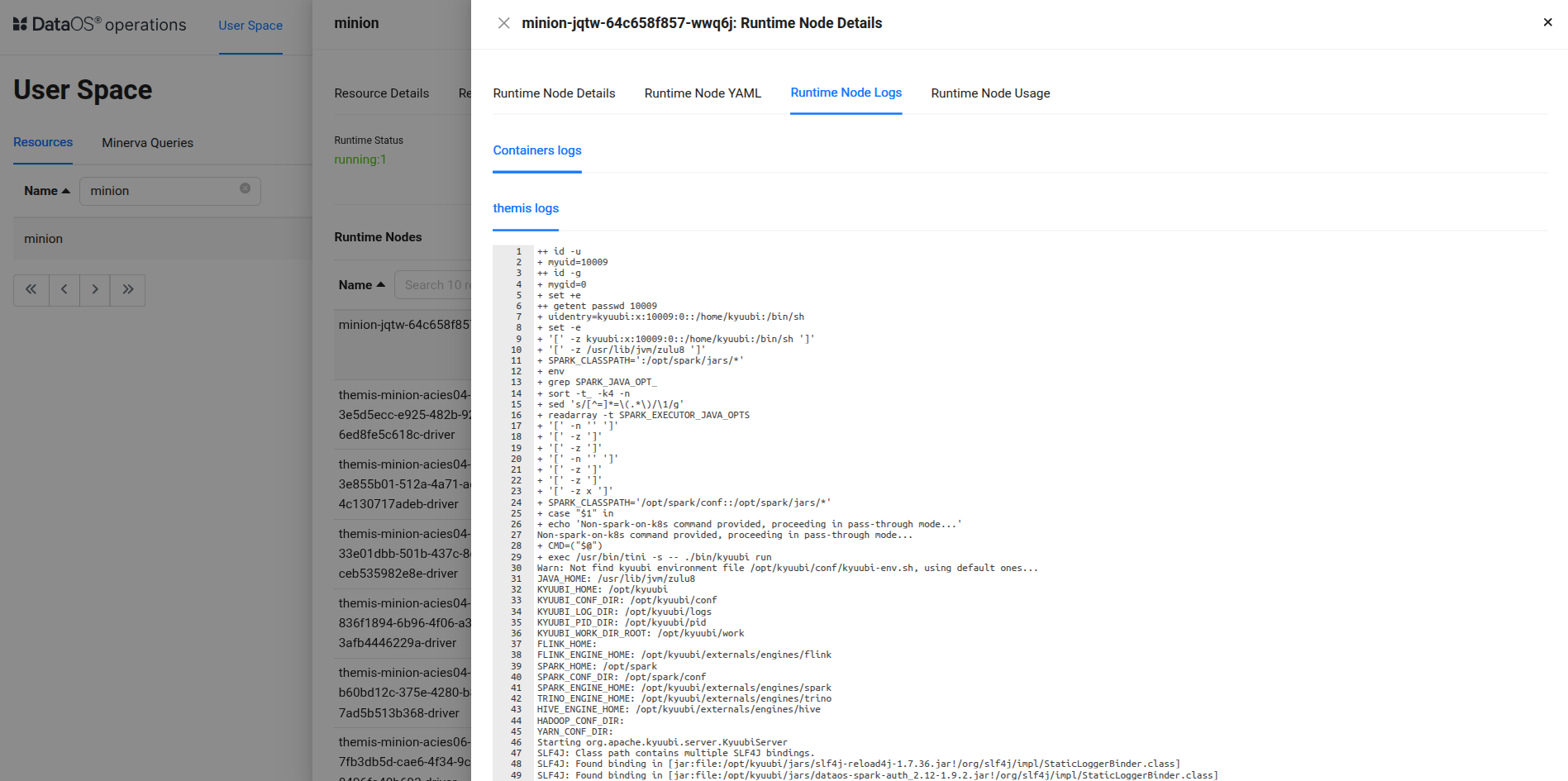

Runtime Node Logs in Operations

These logs show:
- The container started successfully.
- All major environment variables were configured.
- KyuubiServer started, despite minor logging configuration warnings.
- The pod is running and healthy.
This output is typical for a Spark/SQL gateway container like Kyuubi deployed in a cluster resource.
