Streamlit Implementation

This section provides the steps to implement the Streamlit framework to build a web application using the Python Stack.

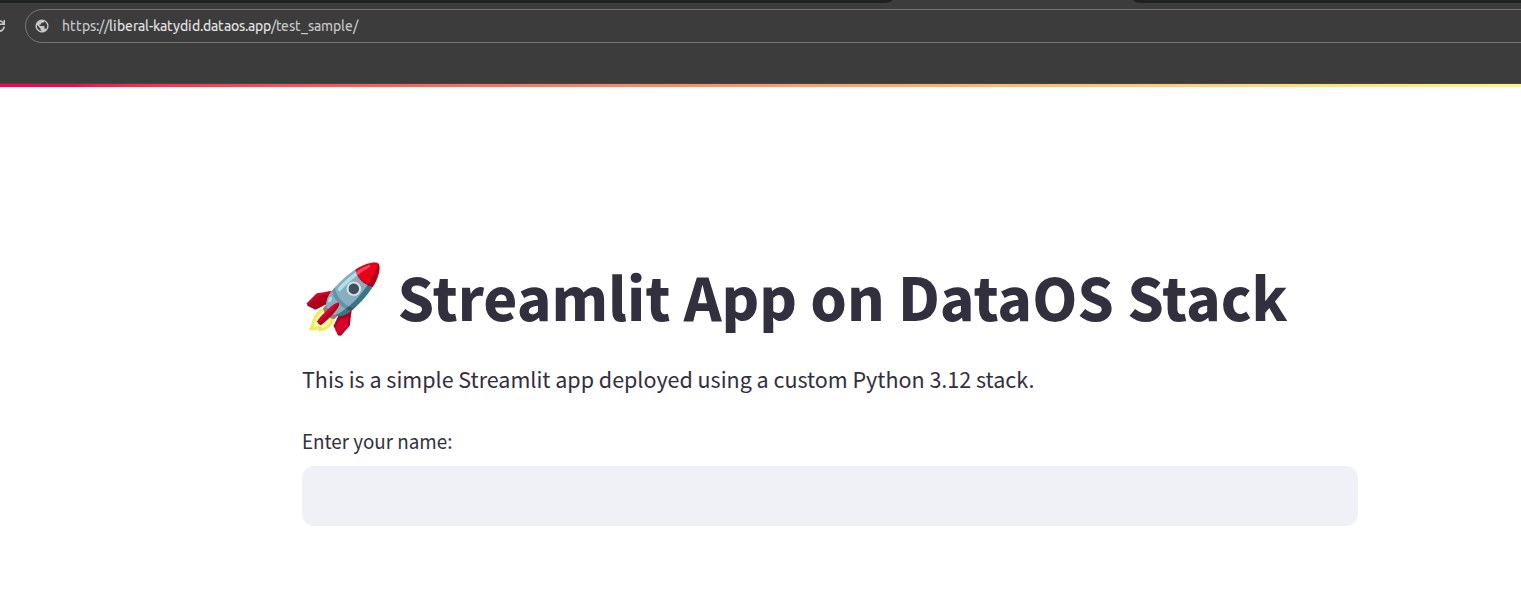

Streamlit App

Prerequisites

Before starting to implement the Streamlit framework using Python Stack, ensure you have met the requirements listed in this section.

Step 1. Create/Select a Repository

Create or select any repository in GitHub or Bitbucket where the Python code will be added.

Step 2. Create base directory

Inside that repository, add a folder named app, which will include the Python scripts with the .py extension, a requirements file with a .txt extension, and .streamlit folder with config.toml file, which will include Streamlit-specific configurations.

python-stack/
└── app/                        # baseDir (referenced in service/stack manifest)
    ├── main.py                 # Application entry point (required)
    ├── requirements.txt        # Dependencies (required)
    ├── app_ui.py               # Streamlit UI logic
    └── .streamlit/             # Streamlit-specific configuration folder
        └── config.toml         # Custom Streamlit configuration

Step 3. Add the Python code and dependencies

In the files with the .py extension, add your Python script, in the requirements.txt file, add the requirements to run the Python scripts, and in the config.toml, add streamlit-specific configurations as given in the example below.

Example:

app_ui.pymain.pyrequirements.txtconfig.toml

# app_ui.py
import streamlit as st

def run_app():
    st.set_page_config(page_title="Demo App", layout="centered")

    st.title("🚀 Streamlit App on DataOS Stack")
    st.write("This is a simple Streamlit app deployed using a custom Python 3.12 stack.")

    name = st.text_input("Enter your name:")
    if name:
        st.success(f"Hello, {name}! Welcome to DataOS Streamlit deployments.")

# main.py
import os
from app_ui import run_app  # Import the user's Streamlit app

def main():
    # Check if already running inside Streamlit to avoid recursion
    if not os.getenv("IS_RUNNING_STREAMLIT"):
        os.environ["IS_RUNNING_STREAMLIT"] = "1"
        os.system(f"streamlit run {__file__}")
        return

    # Call the actual app function
    run_app()

if __name__ == "__main__":
    main()

streamlit==1.45.0
pandas==2.2.2
numpy>=1.24.0
requests

# .streamlit/config.toml
[server]
port = 8050
address = "0.0.0.0"
baseUrlPath = "test_sample"

Step 4. Push the changes

Once the repository and the code are ready to be deployed, push the changes by executing the commands below.

git add .
git commit -m "chore: provision repo with baseDir, script, and requirements file"
git push -u origin main

Step 5. Secure repository credentials within DataOS

If the app code is in a private Git repository, credentials must be secured in DataOS using secrets. These secrets are referred to during repository sync:

• GitHub: Create a Personal Access Token (PAT), then store it in DataOS as a secret. Guide | GitHub PAT docs
• Bitbucket: Generate an App Password (API token) with repo permissions, then store it in DataOS as a secret. Guide | Bitbucket docs

Step 6. Create a Python Service manifest file

Create a Service Resource manifest file using the template given below by replacing the placeholders with the actual values.

name: python-service
version: v1
type: service
tags:
  - service
  - python-stack
  - dataos:type:resource
  - dataos:resource:service
  - dataos:layer:user
  - dataos:workspace:public
description: Python Service Sample
owner: iamgroot
workspace: public
service:
  servicePort: 8050
  ingress:
    enabled: true
    path: /test_sample
    noAuthentication: true
  replicas: 1
  stack: python3:1.0
  logLevel: INFO
  dataosSecrets:
    - name: bitbucket-cred
      allKeys: true
      consumptionType: envVars
  compute: runnable-default
  resources:
    requests:
      cpu: 1000m
      memory: 1536Mi
  stackSpec:
    repo:
      baseDir: queries/pystack-streamlit
      syncFlags:
        - '--ref=main'
      url: https://bitbucket.org/queries/

Step 7. Apply the Service manifest file

Apply the Service manifest file by executing the command below.

dataos-ctl resource apply -f ${{path-to-manifest-file}}

Step 8. Verify the Service

Validate the Service by executing the command below.

dataos-ctl resource get -t service -n ${{service-identifier}} -w ${{workspace}}

Example:

dataos-ctl resource get -t service -w public -n my-python-app-test
# Expected output:
INFO[0000] 🔍 get...
INFO[0001] 🔍 get...complete

         NAME        | VERSION |  TYPE   | WORKSPACE | STATUS |  RUNTIME  |    OWNER
---------------------|---------|---------|-----------|--------|-----------|--------------
  my-python-app-test | v1      | service | public    | active | running:1 | iamgroot

Step 9. Validate the code execution

To validate if the Python script executed without any errors, run the following command.

dataos-ctl resource log -t service -w public -n ${{service-identifier}}

Example

dataos-ctl resource log -t service -w public -n my-python-app-test
INFO[0000] 📃 log(public)...
INFO[0001] 📃 log(public)...complete

                  NODE NAME                  │        CONTAINER NAME        │ ERROR
─────────────────────────────────────────────┼──────────────────────────────┼────────
  my-python-app-test-6831-d-57cbf95b7c-zz4j9 │ my-python-app-test-6831-main │

-------------------LOGS-------------------
/etc/dataos/work
Collecting streamlit==1.45.0 (from -r requirements.txt (line 1))
  Downloading streamlit-1.45.0-py3-none-any.whl.metadata (8.9 kB)
Collecting pandas==2.2.2 (from -r requirements.txt (line 2))
  Downloading pandas-2.2.2-cp312-cp312-manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata (19 kB)
Collecting numpy>=1.24.0 (from -r requirements.txt (line 3))
  Downloading numpy-2.3.2-cp312-cp312-manylinux_2_27_x86_64.manylinux_2_28_x86_64.whl.metadata (62 kB)
Collecting requests (from -r requirements.txt (line 4))
  Downloading requests-2.32.5-py3-none-any.whl.metadata (4.9 kB)
Collecting altair<6,>=4.0 (from streamlit==1.45.0->-r requirements.txt (line 1))
  Downloading altair-5.5.0-py3-none-any.whl.metadata (11 kB)
Collecting blinker<2,>=1.5.0 (from streamlit==1.45.0->-r requirements.txt (line 1))
  Downloading blinker-1.9.0-py3-none-any.whl.metadata (1.6 kB)
Collecting cachetools<6,>=4.0 (from streamlit==1.45.0->-r requirements.txt (line 1))
  Downloading cachetools-5.5.2-py3-none-any.whl.metadata (5.4 kB)
Collecting click<9,>=7.0 (from streamlit==1.45.0->-r requirements.txt (line 1))
  Downloading click-8.2.1-py3-none-any.whl.metadata (2.5 kB)
Collecting packaging<25,>=20 (from streamlit==1.45.0->-r requirements.txt (line 1))
  Downloading packaging-24.2-py3-none-any.whl.metadata (3.2 kB)
Collecting pillow<12,>=7.1.0 (from streamlit==1.45.0->-r requirements.txt (line 1))
  Downloading pillow-11.3.0-cp312-cp312-manylinux_2_27_x86_64.manylinux_2_28_x86_64.whl.metadata (9.0 kB)
Collecting protobuf<7,>=3.20 (from streamlit==1.45.0->-r requirements.txt (line 1))
  Downloading protobuf-6.32.0-cp39-abi3-manylinux2014_x86_64.whl.metadata (593 bytes)
Collecting pyarrow>=7.0 (from streamlit==1.45.0->-r requirements.txt (line 1))
  Downloading pyarrow-21.0.0-cp312-cp312-manylinux_2_28_x86_64.whl.metadata (3.3 kB)
Collecting tenacity<10,>=8.1.0 (from streamlit==1.45.0->-r requirements.txt (line 1))
  Downloading tenacity-9.1.2-py3-none-any.whl.metadata (1.2 kB)
Collecting toml<2,>=0.10.1 (from streamlit==1.45.0->-r requirements.txt (line 1))
  Downloading toml-0.10.2-py2.py3-none-any.whl.metadata (7.1 kB)
Collecting typing-extensions<5,>=4.4.0 (from streamlit==1.45.0->-r requirements.txt (line 1))
  Downloading typing_extensions-4.15.0-py3-none-any.whl.metadata (3.3 kB)
Collecting watchdog<7,>=2.1.5 (from streamlit==1.45.0->-r requirements.txt (line 1))
  Downloading watchdog-6.0.0-py3-none-manylinux2014_x86_64.whl.metadata (44 kB)
Collecting gitpython!=3.1.19,<4,>=3.0.7 (from streamlit==1.45.0->-r requirements.txt (line 1))
  Downloading gitpython-3.1.45-py3-none-any.whl.metadata (13 kB)
Collecting pydeck<1,>=0.8.0b4 (from streamlit==1.45.0->-r requirements.txt (line 1))
  Downloading pydeck-0.9.1-py2.py3-none-any.whl.metadata (4.1 kB)
Collecting tornado<7,>=6.0.3 (from streamlit==1.45.0->-r requirements.txt (line 1))
  Downloading tornado-6.5.2-cp39-abi3-manylinux_2_5_x86_64.manylinux1_x86_64.manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata (2.8 kB)
Collecting python-dateutil>=2.8.2 (from pandas==2.2.2->-r requirements.txt (line 2))
  Downloading python_dateutil-2.9.0.post0-py2.py3-none-any.whl.metadata (8.4 kB)
Collecting pytz>=2020.1 (from pandas==2.2.2->-r requirements.txt (line 2))
  Downloading pytz-2025.2-py2.py3-none-any.whl.metadata (22 kB)
Collecting tzdata>=2022.7 (from pandas==2.2.2->-r requirements.txt (line 2))
  Downloading tzdata-2025.2-py2.py3-none-any.whl.metadata (1.4 kB)
Collecting charset_normalizer<4,>=2 (from requests->-r requirements.txt (line 4))
  Downloading charset_normalizer-3.4.3-cp312-cp312-manylinux2014_x86_64.manylinux_2_17_x86_64.manylinux_2_28_x86_64.whl.metadata (36 kB)
Collecting idna<4,>=2.5 (from requests->-r requirements.txt (line 4))
  Downloading idna-3.10-py3-none-any.whl.metadata (10 kB)
Collecting urllib3<3,>=1.21.1 (from requests->-r requirements.txt (line 4))
  Downloading urllib3-2.5.0-py3-none-any.whl.metadata (6.5 kB)
Collecting certifi>=2017.4.17 (from requests->-r requirements.txt (line 4))
  Downloading certifi-2025.8.3-py3-none-any.whl.metadata (2.4 kB)
Collecting jinja2 (from altair<6,>=4.0->streamlit==1.45.0->-r requirements.txt (line 1))
  Downloading jinja2-3.1.6-py3-none-any.whl.metadata (2.9 kB)
Collecting jsonschema>=3.0 (from altair<6,>=4.0->streamlit==1.45.0->-r requirements.txt (line 1))
  Downloading jsonschema-4.25.1-py3-none-any.whl.metadata (7.6 kB)
Collecting narwhals>=1.14.2 (from altair<6,>=4.0->streamlit==1.45.0->-r requirements.txt (line 1))
  Downloading narwhals-2.4.0-py3-none-any.whl.metadata (11 kB)
Collecting gitdb<5,>=4.0.1 (from gitpython!=3.1.19,<4,>=3.0.7->streamlit==1.45.0->-r requirements.txt (line 1))
  Downloading gitdb-4.0.12-py3-none-any.whl.metadata (1.2 kB)
Collecting six>=1.5 (from python-dateutil>=2.8.2->pandas==2.2.2->-r requirements.txt (line 2))
  Downloading six-1.17.0-py2.py3-none-any.whl.metadata (1.7 kB)
Collecting smmap<6,>=3.0.1 (from gitdb<5,>=4.0.1->gitpython!=3.1.19,<4,>=3.0.7->streamlit==1.45.0->-r requirements.txt (line 1))
  Downloading smmap-5.0.2-py3-none-any.whl.metadata (4.3 kB)
Collecting MarkupSafe>=2.0 (from jinja2->altair<6,>=4.0->streamlit==1.45.0->-r requirements.txt (line 1))
  Downloading MarkupSafe-3.0.2-cp312-cp312-manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata (4.0 kB)
Collecting attrs>=22.2.0 (from jsonschema>=3.0->altair<6,>=4.0->streamlit==1.45.0->-r requirements.txt (line 1))
  Downloading attrs-25.3.0-py3-none-any.whl.metadata (10 kB)
Collecting jsonschema-specifications>=2023.03.6 (from jsonschema>=3.0->altair<6,>=4.0->streamlit==1.45.0->-r requirements.txt (line 1))
  Downloading jsonschema_specifications-2025.9.1-py3-none-any.whl.metadata (2.9 kB)
Collecting referencing>=0.28.4 (from jsonschema>=3.0->altair<6,>=4.0->streamlit==1.45.0->-r requirements.txt (line 1))
  Downloading referencing-0.36.2-py3-none-any.whl.metadata (2.8 kB)
Collecting rpds-py>=0.7.1 (from jsonschema>=3.0->altair<6,>=4.0->streamlit==1.45.0->-r requirements.txt (line 1))
  Downloading rpds_py-0.27.1-cp312-cp312-manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata (4.2 kB)
Downloading streamlit-1.45.0-py3-none-any.whl (9.9 MB)
   ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 9.9/9.9 MB 58.3 MB/s eta 0:00:00
Downloading pandas-2.2.2-cp312-cp312-manylinux_2_17_x86_64.manylinux2014_x86_64.whl (12.7 MB)
   ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 12.7/12.7 MB 161.8 MB/s eta 0:00:00
Downloading numpy-2.3.2-cp312-cp312-manylinux_2_27_x86_64.manylinux_2_28_x86_64.whl (16.6 MB)
   ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 16.6/16.6 MB 147.7 MB/s eta 0:00:00
Downloading requests-2.32.5-py3-none-any.whl (64 kB)
Downloading altair-5.5.0-py3-none-any.whl (731 kB)
   ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 731.2/731.2 kB 306.7 MB/s eta 0:00:00
Downloading blinker-1.9.0-py3-none-any.whl (8.5 kB)
Downloading cachetools-5.5.2-py3-none-any.whl (10 kB)
Downloading certifi-2025.8.3-py3-none-any.whl (161 kB)
Downloading charset_normalizer-3.4.3-cp312-cp312-manylinux2014_x86_64.manylinux_2_17_x86_64.manylinux_2_28_x86_64.whl (151 kB)
Downloading click-8.2.1-py3-none-any.whl (102 kB)
Downloading gitpython-3.1.45-py3-none-any.whl (208 kB)
Downloading idna-3.10-py3-none-any.whl (70 kB)
Downloading packaging-24.2-py3-none-any.whl (65 kB)
Downloading pillow-11.3.0-cp312-cp312-manylinux_2_27_x86_64.manylinux_2_28_x86_64.whl (6.6 MB)
   ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 6.6/6.6 MB 190.1 MB/s eta 0:00:00
Downloading protobuf-6.32.0-cp39-abi3-manylinux2014_x86_64.whl (322 kB)
Downloading pyarrow-21.0.0-cp312-cp312-manylinux_2_28_x86_64.whl (42.8 MB)
   ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 42.8/42.8 MB 142.6 MB/s eta 0:00:00
Downloading pydeck-0.9.1-py2.py3-none-any.whl (6.9 MB)
   ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 6.9/6.9 MB 169.9 MB/s eta 0:00:00
Downloading python_dateutil-2.9.0.post0-py2.py3-none-any.whl (229 kB)
Downloading pytz-2025.2-py2.py3-none-any.whl (509 kB)
Downloading tenacity-9.1.2-py3-none-any.whl (28 kB)
Downloading toml-0.10.2-py2.py3-none-any.whl (16 kB)
Downloading tornado-6.5.2-cp39-abi3-manylinux_2_5_x86_64.manylinux1_x86_64.manylinux_2_17_x86_64.manylinux2014_x86_64.whl (443 kB)
Downloading typing_extensions-4.15.0-py3-none-any.whl (44 kB)
Downloading tzdata-2025.2-py2.py3-none-any.whl (347 kB)
Downloading urllib3-2.5.0-py3-none-any.whl (129 kB)
Downloading watchdog-6.0.0-py3-none-manylinux2014_x86_64.whl (79 kB)
Downloading gitdb-4.0.12-py3-none-any.whl (62 kB)
Downloading jinja2-3.1.6-py3-none-any.whl (134 kB)
Downloading jsonschema-4.25.1-py3-none-any.whl (90 kB)
Downloading narwhals-2.4.0-py3-none-any.whl (406 kB)
Downloading six-1.17.0-py2.py3-none-any.whl (11 kB)
Downloading attrs-25.3.0-py3-none-any.whl (63 kB)
Downloading jsonschema_specifications-2025.9.1-py3-none-any.whl (18 kB)
Downloading MarkupSafe-3.0.2-cp312-cp312-manylinux_2_17_x86_64.manylinux2014_x86_64.whl (23 kB)
Downloading referencing-0.36.2-py3-none-any.whl (26 kB)
Downloading rpds_py-0.27.1-cp312-cp312-manylinux_2_17_x86_64.manylinux2014_x86_64.whl (386 kB)
Downloading smmap-5.0.2-py3-none-any.whl (24 kB)
Installing collected packages: pytz, watchdog, urllib3, tzdata, typing-extensions, tornado, toml, tenacity, smmap, six, rpds-py, pyarrow, protobuf, pillow, packaging, numpy, narwhals, MarkupSafe, idna, click, charset_normalizer, certifi, cachetools, blinker, attrs, requests, referencing, python-dateutil, jinja2, gitdb, pydeck, pandas, jsonschema-specifications, gitpython, jsonschema, altair, streamlit
Successfully installed MarkupSafe-3.0.2 altair-5.5.0 attrs-25.3.0 blinker-1.9.0 cachetools-5.5.2 certifi-2025.8.3 charset_normalizer-3.4.3 click-8.2.1 gitdb-4.0.12 gitpython-3.1.45 idna-3.10 jinja2-3.1.6 jsonschema-4.25.1 jsonschema-specifications-2025.9.1 narwhals-2.4.0 numpy-2.3.2 packaging-24.2 pandas-2.2.2 pillow-11.3.0 protobuf-6.32.0 pyarrow-21.0.0 pydeck-0.9.1 python-dateutil-2.9.0.post0 pytz-2025.2 referencing-0.36.2 requests-2.32.5 rpds-py-0.27.1 six-1.17.0 smmap-5.0.2 streamlit-1.45.0 tenacity-9.1.2 toml-0.10.2 tornado-6.5.2 typing-extensions-4.15.0 tzdata-2025.2 urllib3-2.5.0 watchdog-6.0.0
WARNING: Running pip as the 'root' user can result in broken permissions and conflicting behaviour with the system package manager, possibly rendering your system unusable. It is recommended to use a virtual environment instead: https://pip.pypa.io/warnings/venv. Use the --root-user-action option if you know what you are doing and want to suppress this warning.

[notice] A new release of pip is available: 25.0.1 -> 25.2
[notice] To update, run: pip install --upgrade pip

Collecting usage statistics. To deactivate, set browser.gatherUsageStats to false.

  You can now view your Streamlit app in your browser.

  URL: http://0.0.0.0:8050/test_sample_st01

Step 10. Access the web app

Once the Service starts running, users can access the web app using the base URL configured in config.toml as shown in the example below.

https://${{dataos-fqdn}}/${{baseUrlPath}}/

Example:

https://liberal-katydid.dataos.app/test_sample/
