PostgreSQL

The Nilus connector for PostgreSQL supports Change Data Capture (CDC), enabling real-time replication of changes from PostgreSQL transactional databases to Supported Destinations, such as the Lakehouse.

Prerequisites

Before enabling CDC, ensure the following configurations depending on your hosting environment:

PostgreSQL Configuration

Info

Contact the Database Administrator (DBA) to set up Change Data Capture (CDC) for PostgreSQL.

  • Azure-hosted PostgreSQL : Set wal_level to logical to enable logical replication.

    ALTER SYSTEM SET wal_level = logical;

    Note: This is required for logical replication, which enables Change Data Capture.

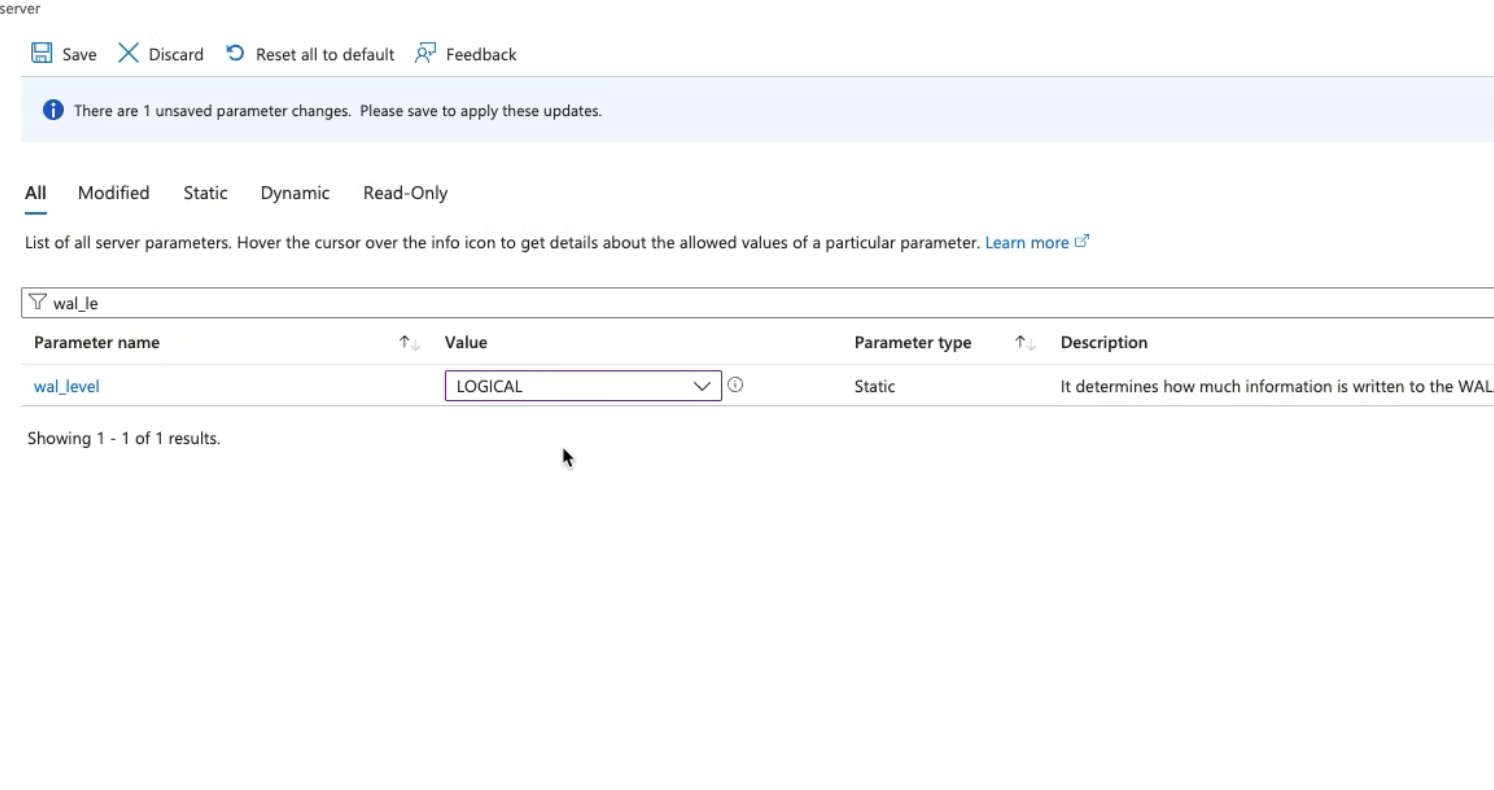

  • Azure portal: This setting is found under Server Parameters.

    Serve Parameters on Azure Cloud Console

  • Amazon RDS for PostgreSQL

    • Enable the pglogical extension.

    • Set the static parameter:

      rds.logical_replication = 1;

    • Adjust replication parameters if needed:\ wal_level, max_wal_senders, max_replication_slots, max_connections.

  • Important: Reboot the DB instance for changes to take effect.

  • Links for more information

User Permissions

The connection user must have login and replication permissions. Check permissions with:

SELECT rolcanlogin AS can_login, rolreplication AS can_replicate
FROM pg_roles
WHERE rolname = 'username';

  • Grant if required:

    ALTER ROLE <username> WITH LOGIN REPLICATION;

  • Or create a new user:

    CREATE ROLE <username> WITH LOGIN REPLICATION PASSWORD '<password>';

Replication Slot

Create a logical replication slot as explained. This process requires that you specify a decoding plugin.:

  • test_decoding
  • wal2json

Info

Use a unique slot name for each Nilus instance.

Pre-created PostgreSQL Depot

A Depot must exist in DataOS with read-write access. To check the Depot, go to the Metis UI of the DataOS or use the following command:

dataos-ctl resource get -t depot -a

#Expected Output
NFO[0000] 🔍 get...
INFO[0000] 🔍 get...complete
| NAME          | VERSION | TYPE  | STATUS | OWNER    |
| ------------- | ------- | ----- | ------ | -------- |
| postgresdepot | v2alpha | depot | active | usertest |

If the Depot is not created use the following manifest configuration template to create the PostgreSQL Depot:

PostgreSQL Depot Manifest
name: ${{depot-name}}
version: v2alpha
type: depot
tags:
  - ${{tag1}}
  - ${{tag2}}
layer: user
depot:
  type: postgres
  external: true
secrets:
  - name: ${{instance-secret-name}}-r
    allkeys: ${{true}}

  - name: ${{instance-secret-name}}-rw
    allkeys: ${{true}}

Info

Update variables such as name, owner, and layer, and contact the DataOS Administrator or Operator to obtain the appropriate secret name.

Sample Service Config

Following manifest configuration template can be use to apply the CDC for PostgreSQL:

name: ${{service-name}}                                    # Service identifier
version: v1                                                # Version of the service
type: service                                              # Defines the resource type
tags:                                                      # Classification tags
    - ${{tag}}
    - ${{tag}}
description: Nilus CDC Service for Postgres description    # Description of the service
workspace: public                                          # Workspace where the service is deployed

service:                                                   # Service specification block
  servicePort: 9010                                        # Service port
  replicas: 1                                              # Number of replicas
  logLevel: INFO                                           # Logging level
  compute: ${{query-default}}                              # Compute profile
  persistentVolume:                                        # Persistent volume configuration
    name: ${{ncdc-vo1-01}}                                 # Volume name (multiple options commented)
    directory: ${{nilus_01}}                               # Target directory within the volume
  stack: nilus:3.0                                         # Nilus stack version
  stackSpec:                                               # Stack specification
    source:                                                # Source configuration block
      address: dataos://postgresdepot                      # Source depot address/UDL
      options:                                             # Source-specific options
        engine: debezium                                   # Required for CDC; not used for batch ingestion
        table.include.list: "public.customers"             # Tables to include from source
        topic.prefix: "cdc_changelog"                      # Required topic prefix, can be customized
        slot.name: "test3"                                 # Required replication slot name, must be unique
        heartbeat.interval.ms: 60000                       # Required heartbeat interval (ms)
        topic.heartbeat.prefix: "nilus_heartbeat"          # Required heartbeat topic prefix
    sink:                                                  # Sink configuration block
      address: dataos://testinghouse                       # Sink DataOS Lakehouse address
      options:                                             # Sink-specific options
         dest-table: pgdb_test_004                         # Destination table name in sink
        incremental-strategy: append                       # Append mode for CDC write strategy

Info

Ensure that all placeholder values and required fields (e.g., connection addresses, slot names, and access credentials) are properly updated before applying the configuration to a DataOS workspace.

Deploy the manifest file using the following command:

dataos-ctl resource apply -f ${{path to the Nilus Service YAML}}

Best Practices

  1. Always include all partitions in table.include.list.
  2. Confirm wal_level = logical.
  3. Grant replication user sufficient privileges.
  4. Monitor replication slots to avoid WAL buildup.

Source Options

Nilus supports the following PostgreSQL CDC source options:

Option Default Description Requirement
heartbeat.interval.ms No default Controls how frequently the connector sends heartbeat messages to a Kafka topic. Optional
topic.heartbeat.prefix No default Controls the name of the topic for heartbeat messages. The naming pattern is: topic.heartbeat.prefix.topic.prefix Optional
slot.name No default Name of the logical replication slot for streaming changes. Unique per Nilus instance, it tracks WAL changes as a bookmark. Mandatory
topic.prefix No default Unique topic prefix for change events. Must be alphanumeric, hyphens, dots, or underscores. Forms the namespace and is appended to sink table names. Mandatory
schema.include.list No default Regular expressions of schema names to include, monitoring all non-system tables. Not usable with schema.exclude.list. Optional
schema.exclude.list No default Regular expressions of schema names to exclude from monitoring. Not usable with schema.include.list. Optional
table.include.list No default Regular expressions of fully qualified table names to include in CDC. Format: schemaName.tableName. Not usable with table.exclude.list. Optional
table.exclude.list No default Regular expressions of fully qualified table names to exclude in CDC. Format: schemaName.tableName. Not usable with table.include.list. Optional
column.include.list No default Regular expressions of fully qualified column names to include in events. Format: schemaName.tableName.columnName. Not usable with column.exclude.list. Optional
column.exclude.list No default Regular expressions of fully qualified column names to exclude from events. Format: schemaName.tableName.columnName. Not usable with column.include.list. Optional
include.unknown.datatypes false Includes fields with unknown data types as binary payloads in change events. Optional
max.batch.size 2048 Maximum number of events processed in a single batch. Optional
snapshot.mode initial Defines snapshot behavior at connector startup with options like always, initial, no_data, initial_only, or when_needed. Optional
time.precision.mod adaptive

adaptive captures the time and timestamp values exactly as in the database using either millisecond, microsecond, or nanosecond precision values based on the database column’s type.

adaptive_time_microseconds captures the date, datetime and timestamp values exactly as in the database using either millisecond, microsecond, or nanosecond precision values based on the database column’s type. An exception is TIME type fields, which are always captured as microseconds.

connect always represents time and timestamp values by using connectors built-in representations for Time, Date, and Timestamp, which use millisecond precision regardless of the database columns' precision.

 Optional
decimal.handling.m precise

precise represents values by using java.math.BigDecimal to represent values in binary form in change events.

double represents values by using double values, which might result in a loss of precision but which is easier to use.

string encodes values as formatted strings, which are easy to consume but semantic information about the real type is lost.

 Optional

Sink Options

Nilus supports the following sink options for PostgreSQL CDC workflows:

Field Description Default
dest-table Target table in the sink. —
incremental-strategy Write mode (append recommended for CDC). append

Core Concepts

Nilus captures row-level changes from PostgreSQL using its logical replication infrastructure. Below are the key concepts that explain how Nilus works with PostgreSQL.

  1. Logical Replication

    1. Nilus relies on logical replication to stream data changes from the Write-Ahead Log (WAL).
    2. It must be enabled at the PostgreSQL server level (wal_level = logical).
    3. Only changes to tables with a primary key and a valid replica identity are captured.
    4. Replica Identity defines how PostgreSQL identifies rows during UPDATE or DELETE operations.

  2. WAL and LSN

    1. Write-Ahead Log (WAL): PostgreSQL’s transaction log containing all committed changes.
    2. Nilus reads the WAL via a logical decoding plugin.
    3. Each event is tagged with a Log Sequence Number (LSN), allowing Nilus to: 1. Resume precisely after interruptions. 2. Guarantee ordered and lossless streaming.

  3. Initial Snapshot

    When a Nilus connector starts for the first time (or if snapshotting is explicitly enabled):

    1. It connects via JDBC.
    2. Reads schema metadata from system catalogs (information_schema.tables, pg_catalog.pg_attribute, etc.).
    3. Captures baseline schema (columns, types, primary keys).
    4. Emits a read (op: r) event for every row in the included tables.
    5. This provides a consistent starting point for downstream pipelines.

  4. Logical Decoding

    After snapshotting, Nilus switches to streaming mode:

    1. Consumes logical decoding messages from WAL using a plugin such as: 1. pgoutput (default, recommended for PostgreSQL ≥10). 2. wal2json or decoderbufs (alternative formats).
    2. These messages contain row-level changes only.
    3. Nilus uses cached schema from the snapshot to interpret them.
    4. Schema changes (e.g., ALTER TABLE) are detected and the cache is updated dynamically.

  5. Replication Slot

    1. Nilus creates a replication slot to retain WAL changes until consumed.
    2. Ensures no data loss, but requires monitoring (slots can cause WAL bloat if Nilus is paused).

    3. Useful queries:

      -- List all replication slots
SELECT * FROM pg_replication_slots;

-- Check WAL sender status
SELECT * FROM pg_stat_replication;

-- Drop an inactive slot
SELECT pg_drop_replication_slot('slot_name');

-- Terminate a backend process
SELECT pg_terminate_backend(pid);

  6. Change Event Structure

    A sample event produced by Nilus:

    {
  "before": {},
  "after": {},
  "source": {
    "version": "2.6.0.Final",
    "connector": "postgresql",
    "name": "dbserver1",
    "ts_ms": 1675348820467,
    "snapshot": "false",
    "db": "mydb",
    "sequence": "[null, \"22817752\"]",
    "schema": "public",
    "lsn": 22817752,
    "txId": 567,
    "xmin": null
  },
  "op": "c",
  "ts_ms": 1675348820467
}

    Key fields:

    • lsn: WAL Log Sequence Number, used for resuming position.
    • txId: PostgreSQL transaction ID (shared across changes in one transaction).
    • sequence: Ordering of changes within a transaction.
    • xmin: Optional transaction visibility marker.

  7. Partitioned Tables

    Nilus supports declaratively partitioned tables, with special considerations:

    1. Data Routing: Inserts/updates/deletes must target the parent table. PostgreSQL routes changes to child partitions.
    2. Primary Key: Must be defined on the parent table and inherited by child partitions.
    3. Table Inclusion: Both parent and child partitions must be explicitly listed in table.include.list.
    4. Publication: Must include parent and child tables (or FOR ALL TABLES). Nilus can auto-create this if permissions allow.
    5. Event Consolidation: Uses ByLogicalTableRouter SMT to unify partition events into a single topic.
    6. Permissions: Replication user must have:
      1. `REPLICATION` role (or `rds_replication` on AWS).
2. `SELECT` and `USAGE` on schemas/tables.
3. `CREATE` if Nilus should auto-create publications.

**Example Partition Setup:**

```sql
CREATE TABLE orders (
    id SERIAL PRIMARY KEY,
    customer_id INT,
    created_at DATE NOT NULL
) PARTITION BY RANGE (created_at);

CREATE TABLE orders_2024_q1 PARTITION OF orders
  FOR VALUES FROM ('2024-01-01') TO ('2024-04-01');
```

    CDC Configuration:

    source:
  address: dataos://postgresdepot
  options:
    engine: debezium
    slot.name: "nilus_slot"
    plugin.name: "pgoutput"
    publication.name: "nilus_pub"
    table.include.list: "public.orders,public.orders_2024_q1"
    topic.prefix: "cdc_changelog"
    heartbeat.interval.ms: 60000
    transforms: "unwrap,Reroute"
    transforms.unwrap.type: "io.debezium.transforms.ExtractNewRecordState"
    transforms.Reroute.type: "io.debezium.transforms.ByLogicalTableRouter"
    transforms.Reroute.topic.regex: "(.*)\\.(.*)\\.orders(_.*)?"
    transforms.Reroute.topic.replacement: "cdc_changelog.public.orders"
